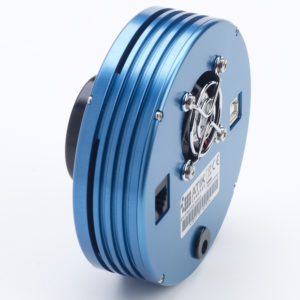

Atik Titan (Discontinued)

548

Atik Titan is perfect for guiding, planetary and deep sky imaging, providing the versatility so you no longer have to choose between planetary and deep-sky imaging. You can now do both, making this the perfect newcomer’s camera. The titan is perfect for starting to learn astrophotography and when you advance is a perfect guider for a bigger camera.

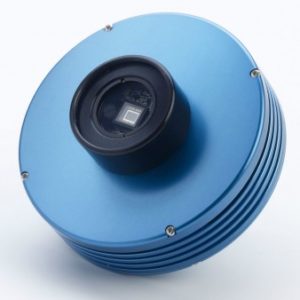

Atik Titan for Guiding, Planetary and Deep-Sky Imaging


As a deep-sky camera, the cooled CCD with low read-noise allows detection of faint details over long exposures. Planetary imaging moves the goal-posts from sensitivity to resolution, requiring fast frame rates to capture moments of best seeing. Excelling at both, the Titan is the perfect introductory camera. And it's blue!

Planetary


In high-speed mode, the Titan is able to record up to 15 frames per second in uncompressed 16-bit format. The high frame rate is important in order to capture moments of steady 'seeing' when the image becomes clear. The 16-bit digitisation makes it easier to pull spectacular detail out of low contrast objects such as the surface of the Sun, or the cloud belts of Saturn.

Deep sky


The Titan has a remarkably low read-noise in deep-sky mode, which allows faint detail to be teased out of the Titan's images. The Titan also features advanced cooling for long-exposure imaging.

Guiding

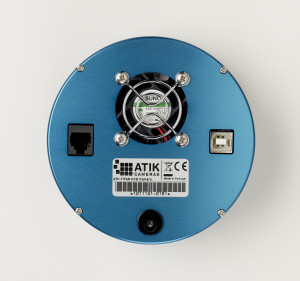

The Titan's mix of high sensitivity and high frame rates makes it an ideal high-end guide camera. It sports a standard ST-4 type guide socket on the back for direct connection to a mount. Guiding can be performed through our Capture software, or programs such as Maxim DL, Astroart and CCDSoft.

Technical Specification

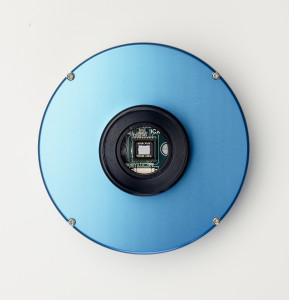

  • Sensor Type: Sony ICX424
  • Horizontal Resolution: 658 pixels
  • Vertical Resolution: 492 pixels
  • Pixel Size: 7.4 µm x 7.4 µm
  • ADC: 16 bit
  • Readout Noise: 7 e-
  • Gain Factor: 0.34e-/ADU
  • Full Well: ~22,500 e-
  • Interface: USB
  • Power: 12v DC 0.6A
  • Cooling: Thermoelectric, ΔT=-20°C max.
  • Weight: 350g
  • Guide Port: ST-4 compatible
  • Available as mono or colour

System Requirements

  • Pentium III PC with 128MB RAM
  • Windows 10/Vista/Win7/Win8 (not RT)
  • CD-ROM drive
  • USB 2.0 port

What's in the box?

  • camera body with 1.25'' adapter
  • 3-metre USB cable
  • 1.8-metre battery power connector
  • CD-ROM with drivers, software and user's manual (PDF)
  • Quickstart guide (paper).

Our highly acclaimed Artemis Capture software is included for camera control and data acquisition, along with a full ASCOM driver. These are also available from our Downloads page.

A universal (110-230V) power adapter is optional.
